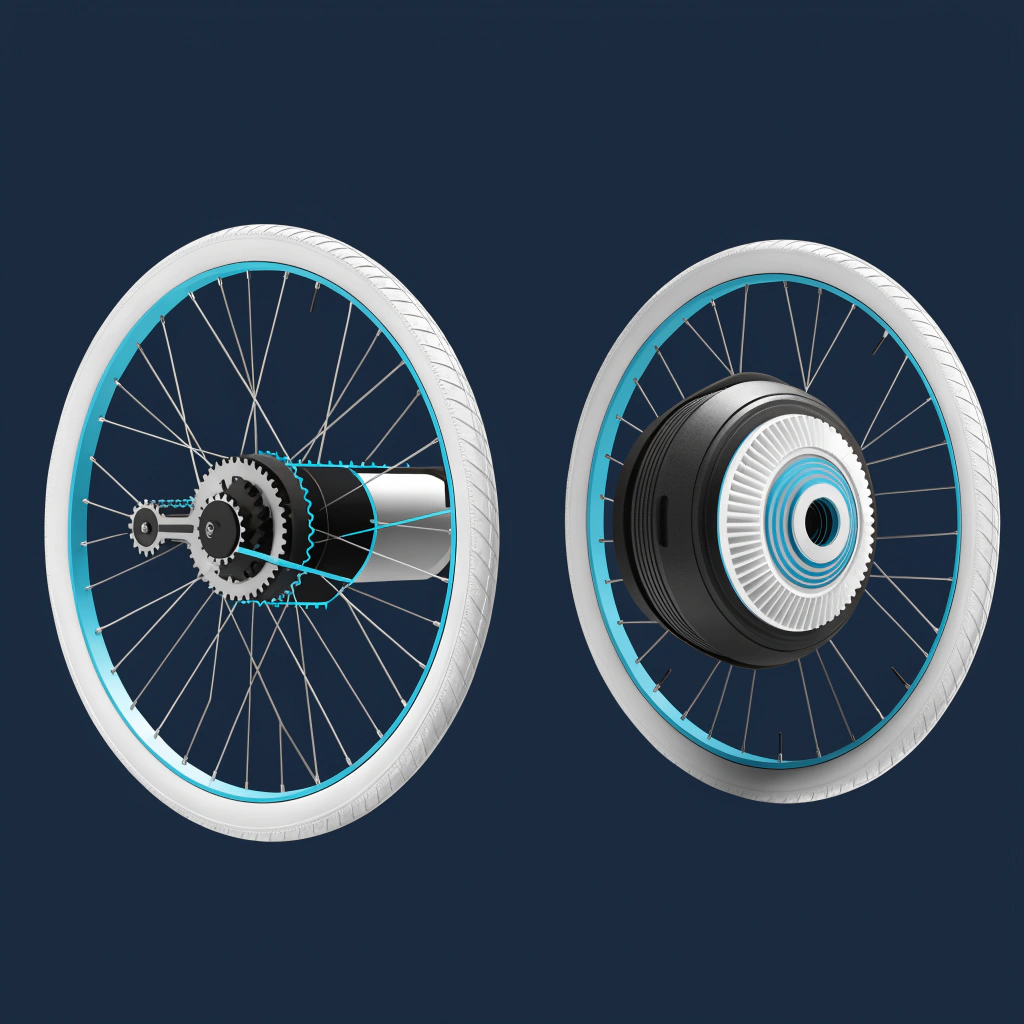

Geared Hub vs Direct-Drive: Which E-Bike Conversion Motor Should You Buy?

One mechanical difference explains almost every trade-off between these two motors: a geared hub has an internal clutch, and a direct drive does not. The clutch is why a geared hub freewheels, and why it can never recover energy under braking.

The Quick Answer

Geared hub for commuting, stop-start riding, hills at moderate speed and easy unpowered pedalling. Direct drive for sustained higher-speed running, high continuous power and regenerative braking. Be careful with the usual generalisations, though: “direct drive is much heavier” is not universally true — our own geared 500W/750W and direct-drive 48V 1000W rear motors are both published at 4kg. Judge the specific motor, not the category.

📚

Part of our choosing a conversion kit series

Main guide: E-Bike Kits: The 2026 DIY Guide to Electric Conversion. Related in this series:

• Torque Sensor vs Cadence Sensor: Which Conversion Kit Feels Natural?
• How Motor Wattage Affects E-Bike Speed: 250W vs 500W vs 1000W vs 2000W Real-World Performance
• KirbEbike vs Swytch vs Bafang: UK Conversion Kit Comparison

Direct Answer: Which Motor Type Suits Your Riding?

Read down to your priority. The last column is the part people skip.

Neither type is better. A geared hub suits low-speed torque and unpowered riding; a direct drive suits sustained speed, high continuous power and regen.

Core Differences Side by Side

Design consequences of one thing: whether a clutch and gears are present.

Hills, Speed and Motor Winding

Hill performance comes from torque at the wheel, and a geared hub gets it from reduction gearing rather than raw size. That is why a 250W geared hub climbs better than its wattage suggests, and why it suits a commuter facing short steep sections.

A direct drive climbing slowly is operating below its efficient RPM range: it cannot change its effective ratio, so it draws heavy current and sheds the surplus as heat with little airflow. Direct-drive hubs can therefore build heat during prolonged low-speed climbing.

Speed depends on winding and wheel size rather than motor type. A hub motor has a designed RPM band, so the same motor in a 20-inch and a 29-inch wheel gives very different road speeds and torque at the tyre. Match the winding to the wheel size you run, and treat any speed claim without stated voltage, wheel size, load and gradient as meaningless.

Weight, Coasting and Ride Feel

The generalisation is that geared hubs are lighter, and across the market it broadly holds. It does not appear to hold between our own two rear motors — but only when the figures are compared on the same basis, so here is that basis stated explicitly.

Both 4kg figures are catalogue weights for the motor only, quoted to one significant figure — treat them as approximate rather than weighed measurements, and note the third row uses a different boundary entirely. A weighed comparison of both motors on the same scales has not been published.

Where weight does differ it sits at the wheel, which affects how the bike feels to lift and steer more than total mass suggests.

Coasting is the clearer difference, and it is mechanical rather than marginal. A geared hub’s clutch disconnects the motor when you stop driving, so the wheel spins freely and the bike pedals close to normally unpowered. A direct drive is always connected, giving a small constant drag plus a faint cogging feel at low speed. On any bike where a flat battery means pedalling home, that matters more than most specifications.

On noise, a geared hub emits a soft whirr under power and goes quiet coasting; a direct drive is close to silent. Neither should rattle, click or grind — those are fault symptoms, not characteristics.

Regenerative Braking: What It Actually Returns

This is where a direct drive has a capability a geared hub cannot have, and where the benefit is most overstated. The mechanism explains both. A geared hub’s clutch lets the wheel overrun the motor, so during deceleration the motor is mechanically disconnected and no energy can flow back. A direct drive has no clutch, the wheel always turns the motor, and with a controller built for it that motor can act as a generator.

That arithmetic is the honest ceiling. Descending 100m recovers at most about 27Wh, roughly 5% of a 500Wh pack even with perfect capture, and no system is close to perfect. A peer-reviewed study of regenerative braking on a hub-type brushless DC motor, published in DergiPark, measured about 6.4% energy recovery at 320rpm falling to around 1.3% at 142rpm — which matches the mechanism: regen returns most at speed and very little at the low speeds where town riding happens. A direct drive also carries constant motor drag whether regen is enabled or not, which offsets part of the gain.

So value regen for what it does well: controlling speed on long descents and reducing brake wear. Treat any claim that it meaningfully extends everyday range with suspicion. And note we do not claim regen support for specific KirbEbike kits here — availability depends on the motor and controller paired with it, so ask us to confirm your exact configuration rather than assuming a direct-drive motor implies it.

Range, Efficiency and Heat

Neither type wins on range outright, because efficiency depends on where the motor is operating rather than on its architecture alone. A suitably wound geared hub often performs efficiently in stop-start, lower-speed use, and adds no drag when pedalling unassisted. A correctly matched direct drive can be efficient near its designed RPM, which suits sustained faster running.

The variables that can reverse either statement are motor winding, wheel diameter, controller current limit, road speed, gradient and total load. A direct drive in a small wheel on a fast flat route and a geared hub in a large wheel crawling up a long climb are both working away from their best point, and the category label predicts neither outcome. No like-for-like efficiency test or manufacturer efficiency map has been published for these SKUs, so treat the comparison as an architecture tendency rather than a measured result.

Heat is the practical limit on both, and decides more than peak power figures do. A direct drive grinding uphill has poor airflow and a large thermal mass slow to shed heat; a geared hub has a smaller case and heat-sensitive gears.

Plan on watt-hours divided by consumption rather than a headline range, and match the battery to the controller by voltage and continuous current.

Reliability and Maintenance

A direct drive is the mechanically simpler motor: no reduction gears and no clutch, so fewer mechanical wear components, which is a genuine advantage over a long service life. Bearings are the main mechanical wear item, but sensors, windings, insulation, seals, connectors and wiring can still degrade or fail. A geared hub adds a gearset and clutch that do wear, though replacement gear kits are commonly available and failure is usually gradual rather than sudden.

That said, motor type is a weak predictor of reliability next to sealing, installation quality, controller settings, heat management and parts supply. Both rear motors above are SHENGYI units, so the useful questions are whether the kit is properly sealed, whether the axle is retained with the specified torque restraint — which matters more on a direct drive, delivering full torque straight to the dropout — and whether parts will still be available in three years.

Front or Rear Placement

A front geared hub is the simplest conversion: it leaves the rear wheel, gears and brake untouched, which helps with awkward cassettes or internal gear hubs. It needs a fork with the correct open dropout spacing, an approved fork material and the specified torque restraint, and has less weight over the driven wheel, so traction suffers on wet or steep starts. A rear hub puts drive where the rider’s weight already is. For a rear hub, identify the gearing interface first. Higher-power direct-drive builds are rear-only in practice.

Kits to Compare

KirbEbike geared options

The EZ Rider kit is a 250W brushless geared front hub with a bundled battery, in universal and Brompton variants. The 250W front kit and the 36V/48V 250W kit are the road-legal front-hub route on Alexrims wheels. Stepping up, the 500W/750W MTX kit is a SHENGYI brushless geared rear motor at about 4kg, offered with 7-speed freewheel or 8–11-speed cassette variants — above 250W and therefore outside EAPC classification.

KirbEbike direct-drive option

KirbEbike · Direct drive · Private land only

48V 1000W E-Bike Kit

From £365.25 without battery · published specification, checked 7 Aug 2026

• SHENGYI brushless direct-drive rear motor, published at about 4kg
• Disc-brake-only MTX wheel, 135–142mm dropouts
• 7-speed freewheel or 8/9/10/11-speed cassette motor options
• Outside EAPC classification — torque arm essential

See the 48V 1000W kit →

Confirm the variant when you order. The standard and all-black wheel variants differ, and the all-black version is published at a heavier 6.2kg for the motor wheel — a different measurement boundary, as the weight table above sets out. Ask us to confirm the exact motor type, model and weight in writing for the variant you are buying. Higher-power direct-drive systems sit in the off-road kit range.

Other systems

Bafang’s G-series is the best-known compact geared hub family, widely stocked in the UK in front and rear variants, though many listings are motor-only so wheel build, controller and battery may be separate. Yose Power sells budget geared kits at 250W and 350W with and without batteries, with the caveat that supplied sensors do not suit every crankset. Swytch, Boost and Cytronex are 250W-class geared systems with bundled batteries. UK direct-drive kits come mainly from generic marketplace sellers, which is why documentation, sealing and parts supply are worth paying for.

Listed alphabetically. Regen depends on the controller, wiring and battery as well as the motor, and should be treated as unavailable unless confirmed in writing for the exact combination.

Which Motor by Riding Scenario

Scenario first, then type, then the specific SKU.

What to Avoid When Choosing a Hub Motor

Conclusion: Match the Motor to the Speed You Ride At

The clutch explains almost everything. It lets a geared hub freewheel, gives it strong low-speed torque for its size, and makes regenerative braking impossible. Its absence makes a direct drive silent, mechanically simpler and capable of regen, while leaving it least efficient at exactly the low speeds where town riding happens.

So choose by the speed and gradient you actually ride, then verify the specific motor rather than trusting the category: continuous rating, published weight, winding for your wheel size, axle interface, gearing interface and controller current. Keep a road-going build at 250W with assistance stopping at 15.5mph, treat anything above that as outside EAPC classification, and use only a charger authorised for your pack.
