Three to eight hours for most ebike batteries. A 5A charger pushes current about two-and-a-half times faster than a 2A one through the main stage, so it can shave several hours off a big pack. But the speed only counts when the battery, its management system and the connector are all rated for 5A — a plug that fits proves nothing on its own. This guide gives you the full charging-time chart by capacity, the formula to work out your own numbers, and the safety checks that matter more than any of them.
Quick answer
A 2A charger suits smaller packs and long, supervised charging windows. For 20Ah–30Ah batteries and same-day turnarounds, a 5A charger is the better call. Charging time comes down to capacity, charger output, starting charge, temperature and the battery’s own limits — amperage alone never decides it. Whichever you pick, stick to the charger supplied with the battery or one the manufacturer approves.
Commuters deciding whether a faster charger is worth it
Riders with a large 20Ah–30Ah pack that takes all day on a 2A charger
Delivery and high-mileage riders who need the battery ready again the same day
Anyone unsure whether a 5A charger is safe for their battery
DIY builders matching a charger to a newly bought pack
Charging Time by Capacity: 2A vs 5A
The bigger the battery, the wider the gap between a 2A and a 5A charger. Below are empty-to-full estimates by capacity — the ranges already build in the slower finish near full charge.
Empty-to-full charging time (hours)
Blue = 2A charger · teal = 5A charger. General planning estimates — always use the charging time published by your battery manufacturer when it’s available.
10Ah · 2A
5–6 h
10Ah · 5A
2–3 h
15Ah · 2A
7.5–9 h
15Ah · 5A
3–4 h
20Ah · 2A
10–12 h
20Ah · 5A
4–5 h
25Ah · 2A
12.5–14.5 h
25Ah · 5A
5–6 h
30Ah · 2A
15–17 h
30Ah · 5A
6–7 h
The real line-up. Entry Lithium packs ship with a 2A charger (7–10 h); the bigger Taishan and HS-II packs ship with 5A chargers (4–6 h) — capacity and charger are matched at the factory.
How Long Does an Ebike Battery Take to Charge?
Plan for three to eight hours with the supplied charger. Small packs finish sooner; large 20Ah–30Ah batteries can drag on far longer on a 2A charger, because size and charger output decide the result together. Bosch’s own figures, for example, run from roughly three hours to about eleven depending on which battery and charger you pair.
Empty to full takes the longest, since the charger has to put back nearly all the usable energy in the pack. A 15Ah battery might need eight to nine hours on a 2A charger, against three to four with a compatible 5A one. And you never have to run a lithium pack flat first — a shorter partial top-up is usually more convenient and easier on the cells.
⚡
The middle 60% is the fast part. Charging from 20% to 80% replaces about 60% of a battery’s rated capacity — roughly 12Ah on a 20Ah pack. Call it six hours at 2A, or around 2.4 hours at 5A, before finishing losses. It’s the quickest slice of the cycle, and usually all a commuter needs for the next trip.
Why the Final 10% Charges Slowly
It comes down to how lithium-ion charging works: constant current first, then constant voltage. In the bulk stage the charger pushes its main current. Once the pack hits its upper voltage limit, that current tapers off — and some designs also balance the cells near the top of the charge.
So a battery can hit 80% quickly, then crawl from 90% to 100%. That slow finish lets the cells settle at the right voltage without pulling full current the whole way. The charger hasn’t failed — the last stretch is just meant to take longer.
The three-stage charge. Bulk (full current, voltage rising) → absorption (voltage holds, current tapers) → full (current near zero). Smart chargers use this profile for a faster, safer, longer-lasting battery.
2A vs 5A at a Glance
Current is the clearest difference. A 5A charger supplies 150% more than a 2A model through the bulk stage, which changes waiting time, heat and portability. The right choice still depends on your battery, not the bigger number.
Same job, different pace. KirbEbike’s own 2A unit (from £30) is small and gentle; the 5A fast charger (from £80) moves about 2.5× the bulk-stage current — and only belongs on a pack rated to accept it.
2A charger — strengths
Lower current, often less heat
Usually smaller and lighter to carry
Well matched to 10Ah–15Ah packs
Typically lower cost
Fine for a long, supervised overnight window
2A charger — keep in mind
Slow on 20Ah–30Ah packs: 10 to 17 hours
Awkward for daily high-mileage riding
A full large pack may not finish in one evening
5A charger — strengths
Cuts several hours off a large pack
Battery ready again the same day
Ideal for 20Ah–30Ah batteries
Great for quick partial top-ups
Included with Taishan and HS-II packs
5A charger — keep in mind
Battery, BMS and connector must all accept 5A
Can run warmer than a 2A charger
Often larger and heavier
A connector that fits is not proof of compatibility
Ebike Battery Charging Time Chart
Empty-to-full estimates worked from each battery’s rated amp-hour capacity, with room left for current tapering and the other normal limits of charging.
Battery capacity
2A charger
5A charger
10Ah
5–6 hours
2–3 hours
15Ah
7.5–9 hours
3–4 hours
20Ah
10–12 hours
4–5 hours
25Ah
12.5–14.5 hours
5–6 hours
30Ah
15–17 hours
6–7 hours
General estimates. Use the charging time and charger specification published by the battery manufacturer when available.
How to Calculate Your Charging Time
Four numbers give you a decent estimate: battery capacity, charger current, starting percentage and target percentage. It gets less exact near full charge, because the rate doesn’t hold constant all the way to 100%.
The formula
Full charge: capacity (Ah) ÷ charger output (A) + 10–20% for tapering
Partial charge: capacity (Ah) × charge needed ÷ charger output — write the charge needed as a decimal, so 20% to 80% is 0.60.
Working example. A 15Ah pack on a 2A charger: 15 ÷ 2 = 7.5 hours; add about 15% and plan for roughly eight to nine hours. On a matched 5A charger: 15 ÷ 5 = 3 hours, so allow around three-and-a-half to four. A 30%-to-80% top-up is 15 × 0.50 ÷ 5 = about 1.5 hours.
Does Battery Voltage Affect Charging Time?
Voltage sets how much energy a pack stores, and which charger you need — it does not set charging time on its own. A 36V 20Ah and a 52V 20Ah both hold 20Ah of rated capacity, so with properly matched 2A chargers their charging times land close together. The 52V pack stores more watt-hours, but its charger runs at a higher voltage too. Compare only amps, or only voltage, and you get half the picture.
Amp-hours vs watt-hours. Amp-hours show charge capacity — they’re what you use to estimate charging time at a given current. Watt-hours (nominal voltage × amp-hours) show total stored energy, and they’re the better measure for comparing packs of different voltages.
Battery rating
Approximate energy (nominal V × Ah)
36V 15Ah
540 Wh
48V 20Ah
960 Wh
52V 20Ah
1,040 Wh
60V 20Ah
1,200 Wh
72V 20Ah
1,440 Wh
Is a 5A Charger Safe for Your Battery?
Safe — but only on a match. The charger has to line up with the battery’s required voltage, polarity, connector, chemistry and accepted charging current. A plug sliding into the port proves none of that. The US Consumer Product Safety Commission warns specifically against chargers sold as “universal”: one can physically connect while staying electrically incompatible, which is a real fire risk. Its advice is simple — use the charger provided with the product, or one the manufacturer recommends.
✋
Check the charge current, not the discharge current. These are separate specifications. A battery that can discharge 40A to a motor is not automatically cleared to charge at 5A. Its cells, wiring, charge port and BMS charging circuit all have to support the incoming current.
Voltage and polarity must match too. Nominal voltage is not the full-charge voltage: a 36V pack charges to about 42V, a 48V pack to 54.6V, a 52V pack to 58.8V, a 72V pack to 84V. Get the polarity wrong and you can damage the port, charger, BMS or wiring — and the same connector shell turns up wired differently across products. A matching shape is not enough on its own.
KirbEbike’s Taishan and HS-II packs pair their included 5A chargers with cells and a BMS chosen to accept that rate: 60A continuous, IP65 sealed, with listed full-charge times of four to six hours across the range. That match between charger, cells and BMS is what turns fast charging into a safe default rather than a gamble.
Matched by design. HS-II packs ship with their 5A fast charger, mount and a BMS rated for the rate — the safe way to get 4–5 hour charging.
Does a 5A Charger Reduce Battery Lifespan?
Not automatically. Five amps is a 0.5C rate on a 10Ah pack, but only about 0.17C on a 30Ah one — the same charger asks very different things of different batteries. Research does show that aggressive high-rate charging can raise lithium plating and capacity loss in certain conditions. That is not the same as a matched 5A charger harming a large pack built to accept it.
Battery capacity
2A charge rate
5A charge rate
10Ah
0.20C
0.50C
15Ah
0.13C
0.33C
20Ah
0.10C
0.25C
25Ah
0.08C
0.20C
30Ah
0.07C
0.17C
🔥
Heat is the thing to watch. Higher current can put more heat into the charger, wiring, connector and cells — especially if any part is undersized or the battery is still hot from a ride. A little warmth is normal; anything hot to the touch, unplug and inspect. Occasional 5A charging is fine for a quick turnaround. The trouble starts when an unrelated 5A charger gets treated as a universal upgrade.
KirbEbike Batteries and Chargers, by Charge Time
Every KirbEbike battery ships with a charger matched to its cells and BMS, so the charging times below are engineered, not optimistic. Prices are “from” figures and shift on the live store.
the EZ Rider and the Mid-Drive kit are standalone systems — use the charger supplied with those kits, not a core-range charger.

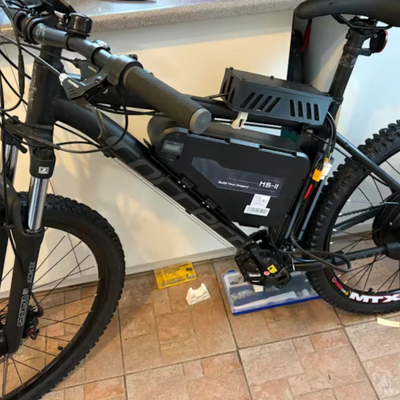

Charged and clamped. A frame-triangle mount keeps the pack low and central — and indoors charging on a matched charger keeps it healthy.
When to Use 2A vs 5A
The right charger follows your battery and your schedule, not the bigger amperage number. Treat this as a quick guide, then confirm the charger is approved for your exact pack.
Your situation
Recommended charger
10Ah–15Ah pack, long evening window
2A (supervised)
20Ah–30Ah pack you charge daily
5A (matched to the pack)
Delivery or high daily mileage
5A (matched to the pack)
Quick midday or between-trip top-up
5A (matched to the pack)
Older or reduced-performance pack
2A, or the manufacturer’s approved charger
Charger not confirmed for the battery
Neither — get an approved charger first
📋
Before you plug in: charger safety check. Run through these once before charging any battery, especially with a new or replacement charger.
Charger output voltage matches the battery label — remember nominal is not the full-charge voltage
Polarity and connector match, not just the plug shape
The battery’s BMS is rated to accept the charge current you’re using
Battery is at room temperature — not hot from a ride or freezing cold
Charging on a hard, dry, ventilated surface, clear of anything flammable
You are present, and will unplug once the cycle is complete
Charge fast, charge safe
Start With the Right Pack
KirbEbike Taishan and HS-II batteries ship with a matched 5A charger: 60A BMS, IP65 sealed, four-to-six-hour full charge. Need a spare? Replacement 2A and 5A chargers are matched to KirbEbike packs only.
Which charger is right for you? For a large pack and same-day charging, a matched 5A charger with a Taishan or HS-II battery is the practical setup. Riding a smaller commuter pack? The entry lithium range and its 2A charger suit long overnight windows. New to conversion? Start with the main kit collection.
Frequently Asked Questions
How long should I charge my ebike battery?
Until the charger reads full, then unplug it. Most packs land between three and eight hours; a matched 5A charger fills a 20Ah–30Ah pack in about four to six. Never leave one charging while you are asleep or out of the house.
Can I use a 5A charger on any ebike battery?
No. Only when the battery’s voltage, polarity, connector and BMS charge limit all accept 5A. A plug that fits proves nothing. Use the charger supplied with the battery, or one the manufacturer approves.
Is it okay to leave a lithium battery on the charger overnight?
Best avoided. Modern chargers taper off or stop when full, but the CPSC still advises staying present and not charging while you sleep or step out. Start earlier in the evening and unplug before bed.
How do I know when my ebike battery is fully charged?
Watch the charger light — it usually flips from red to green, and the current falls close to zero. The dashboard percentage is only an estimate, not a direct read of the energy left in the pack.
Should I always charge my battery to 100%?
Not necessarily. For daily use, holding a pack between roughly 20% and 80% eases the stress on the cells. Charge to 100% before a long ride. Lithium packs have no memory effect, so partial top-ups are perfectly fine.
At what percentage should I recharge?
No need to run it flat first. Topping up from around 20% to 40% is gentler on the cells, and quicker than a full cycle.
Why is my battery not charging even though it is plugged in?
Start with the basics: the charger light, a fully seated connector, and the battery’s temperature. A very hot or cold pack, a BMS limit, or a damaged cable can each pause or stop charging. If anything feels hot or smells burnt, stop and inspect it.
Does a bigger charger charge a small battery faster?
Only up to the battery’s accepted rate. On a 10Ah pack, 5A is a demanding 0.5C — and if the BMS caps the current, those extra amps never reach the cells.
Does fast charging damage an ebike battery?
Not when it’s matched. A 5A charger on a large pack built for it is fine. The risk climbs with heat, cold cells, or an unapproved charger running the wrong voltage or charging profile.
How long does a 52V 20Ah battery take to charge?
Roughly ten hours at 2A, or four at 5A, before the slower finish near full. For reference, KirbEbike’s 52V 25Ah Taishan is listed at five hours with its included 5A charger.
The Bottom Line
5 key points
A 2A charger is the practical pick for smaller batteries and long, supervised windows. A matched 5A charger cuts real downtime on 20Ah–30Ah packs — though the total never drops by a clean 60%, because charging slows near full.
One rule sits above the rest: compatibility comes before speed. Match voltage, polarity, connector, chemistry, charge port and BMS limit; use the supplied or approved charger; stay present; unplug when the cycle ends. When the charger, cells and BMS are engineered together — as they are on KirbEbike’s Taishan and HS-II packs — fast charging is just part of the ride rather than a risk.
Less Waiting, More Riding
Taishan and HS-II packs ship with a matched 5A charger, 60A BMS and IP65 sealing — full in four to six hours.
Compliance note. Prices and specifications follow the live KirbEbike store at the time of writing — confirm on the product page before ordering. Charging-safety guidance reflects US CPSC recommendations; always follow your battery manufacturer’s instructions. High-power kits the larger packs can feed are off-road / private-land only in Great Britain — check local law before riding.
Sources
U.S. Consumer Product Safety Commission — Micromobility charging safety. cpsc.gov
U.S. Consumer Product Safety Commission — Warning about “universal” chargers (2024). cpsc.gov
Bosch eBike Systems — Charger types and charging times. bosch-ebike.com
Bosch eBike Systems — E-bike batteries and charge-time comparisons. bosch-ebike.com
U.S. Department of Energy — Enabling fast charging: technology gap assessment (2017). energy.gov
About this guide. Author: KirbEbike Editorial. Last reviewed: August 2026. Methodology: charging-time estimates are amp-hour arithmetic with a 10–20% allowance for current tapering, cross-checked against manufacturer-published figures from Bosch and KirbEbike product listings; safety guidance follows CPSC recommendations cited above. Always use the charging time and charger specification published by your battery’s manufacturer when available, and never charge unattended.
