Best 72V 20Ah vs 30Ah Battery: Range, Weight & Performance Comparison

72V 20Ah vs 30Ah Quick Comparison Calculator

Before the detail, here is the whole decision in one view. Read it as “same 72V, two different amp-hour tanks.” The number that actually matters for range is watt-hours (Wh) — and Wh comes straight from volts multiplied by amp-hours.

Figures are nominal, before real-world losses. Actual range depends on the motor, controller current, rider weight, terrain and how hard you ride.

What Does 30Ah Mean on a 72V Ebike Battery?

Amp-hours (Ah) refer to the capacity of a battery — in other words, the size of the fuel tank. A 30Ah pack holds more charge than a 20Ah pack at the same voltage, so it can be ridden longer before it needs recharging. By itself, however, the Ah figure only describes half the picture, since it does not account for voltage.

Amp Hours vs Watt Hours: What Actually Determines Range?

Range is determined by energy, not amp-hours. Watt-hours fold voltage into the number and let you compare packs of different voltages. That distinction matters more than most spec sheets admit:

• Amp-hours (Ah) indicate charge capacity — helpful, but only at a specific voltage.
• Watt-hours (Wh) measure the energy used (volts × Ah) — the real energy you spend as you ride.
• A 72V 30Ah pack (≈2,160Wh) holds about 50% more energy than a 72V 20Ah pack (≈1,440Wh), at the same nominal voltage.

More stored energy means longer rides between charges, fewer charging stops on a big day and shallower discharge cycles (gentler on the cells over time). What it does not do is raise top speed, which is set by voltage, controller current, motor and wheel size — not amp-hours. There is no universal mileage figure, so treat any “X miles” claim as a ballpark to verify against your own build.

72V 20Ah vs 30Ah Battery Range Comparison

There are only two things that set range: energy on board (Wh) and how quickly you use it (Wh per km). A fast, fat-tyre or hilly build might use 20–35+ Wh/km, and much less on an efficient road-style build. The charts below turn each pack size into practical distance bands using representative consumption figures.

Estimated Range From a 72V 20Ah Battery

With roughly 1,440Wh available, a 20Ah pack suits shorter high-power rides, weekend trail sessions and riders who want to keep weight down. Using common off-road consumption bands, a realistic spread looks like this:

The usual factors move these numbers: throttle use, sustained speed, gradients, tyre size and pressure, and rider or cargo weight. Ride lightly on pedal-assist and you will beat the eco figure; throttle up every hill and you will miss it.

Estimated Range From a 72V 30Ah Battery

At about 2,160Wh, a 30Ah pack is built for longer days, higher-power motors, heavier bikes and riders who want a bigger buffer before charging. The same consumption bands stretch further:

72V 20Ah vs 30Ah Battery Weight Difference

Capacity is not free. More energy means more cells, and more cells mean more mass and bulk. That trade-off shapes how the finished bike handles, how easy it is to lift, and whether the pack even fits your frame.

Why a Larger Battery Weighs More

A 30Ah pack needs more cells in parallel than a 20Ah pack of the same voltage, and each cell adds weight, volume and cost. For reference, KirbEbike’s verified 72V 20Ah triangle pack weighs around 6.8–7.2 kg depending on series; a 30Ah pack of the same voltage sits meaningfully heavier again. Triangle-format packs help by carrying that mass low and centred in the frame, which keeps handling stable — but you will still feel the difference lifting the bike into a car or up a flight of stairs.

When a Lighter 72V 20Ah Battery Makes More Sense

• You transport the bike often — into a car boot, onto a rack, up to a flat.
• You run a smaller frame with limited triangle space.
• Your rides are shorter and 1,440Wh comfortably covers them.
• You value agility and a nimble feel over maximum range.

When the Extra Weight of a 72V 30Ah Battery Is Worth It

• You ride long distances and want to charge less often.
• You run a high-power conversion that draws hard and benefits from a bigger reserve.
• Your bike is heavy — fat-tyre, cargo or e-moto style builds.
• Range buffer matters more to you than saving a couple of kilos.

BMS Rating: Why It Matters More Than Battery Size Alone

Capacity decides how far you can go; the Battery Management System (BMS) decides how hard the pack can be pushed while you get there. On a high-power 72V build, the BMS is often the real performance limit — a huge 30Ah pack with an underrated BMS can still cut out under load, while a well-matched 20Ah pack keeps delivering.

How the BMS Controls Power Delivery

The BMS is the pack’s built-in safety and management board. It handles the jobs that keep a high-voltage battery safe and consistent:

• Over-current protection — caps how much current the pack will deliver.
• Over-charge and over-discharge protection — keeps cells inside safe voltage limits.
• Cell balancing — keeps individual cells in step for longer pack life.
• Temperature protection — steps in if the pack runs too hot.

Matching BMS Current With Your Motor and Controller

The rule is simple and non-negotiable: the BMS continuous discharge rating must meet or exceed the controller’s current draw. If a controller can pull 60A but the BMS is rated below that, the pack will sag, trip its protection or cut out — problems that get wrongly blamed on the motor. Match the BMS rating to your controller’s actual current draw, not to a headline wattage, and pick a BMS with margin to spare.

Frame Fit and Installation: Will a 72V 30Ah Battery Fit?

Fit anxiety — “will it actually go in my frame?” — drives more battery returns than any other single issue. A 30Ah pack is physically larger than a 20Ah pack, so the answer comes down to measuring your frame triangle before you order, not after.

Measuring Your Frame Triangle Before Buying

Take a tape measure to the inside of your main triangle and note the following before checkout. Compare each figure against the pack’s published dimensions — and remember bottle-cage bolts and cable runs eat into usable space:

• Top tube length (inner)
• Seat tube clearance / height
• Down tube space and any bottle bosses
• Cable and hose routing that crosses the triangle
• Available mounting points for the bracket

Triangle Battery vs Other Mounting Options

Triangle packs sit inside the main frame, which is why they are the default for high-power builds. Compared with rack or seatpost packs, a triangle pack gives you:

• A lower centre of gravity for more stable handling
• Better weight distribution, front to back
• A cleaner, more integrated-looking conversion

Whichever pack you choose, always check the actual battery dimensions and weight against your measurements before ordering — a dimensioned drawing plus real installed photos is the fastest way to remove the doubt.

Charging Time Comparison: 72V 20Ah vs 30Ah

With the same charger, a bigger tank takes longer to fill — there is simply more energy to put back. A 20Ah pack finishes sooner; a 30Ah pack, holding 50% more energy, takes proportionally longer. Charge time is a function of three things: charger output (amps), the pack’s starting state of charge, and how full you top it to.

Which 72V Battery Should You Choose?

If you already know your priorities, here is the decision in short. Neither pack is “better” in the abstract — the right one matches your motor, controller, frame space, riding style and expected range.

Choose a 72V 20Ah Battery If You Want:

• Lower weight and easier handling
• Simpler installation in tighter frames
• A lower upfront cost
• Enough range for shorter rides
• A more compact build

Choose a 72V 30Ah Battery If You Want:

• Maximum range potential from a single pack
• Longer off-road or trail sessions
• More energy reserve before charging
• Less frequent charging on big days
• Better support for demanding, high-draw builds

72V Battery Recommendation by Rider Type

Recommended 72V Battery Options for High-Power Builds

Below is a comparison of UK-facing 72V triangle packs, checked live in July 2026. The aim is to help you choose on the things that matter — cell type, BMS current, warranty, fit and support — rather than to crown one brand “best”. KirbEbike is one option among several and is listed on merit; the alternatives are named, priced and linked so you can compare directly. Prices and stock change, so confirm on each seller’s own page before buying.

A note on reading the table: most of these are 72V 20Ah packs, with genuine 30Ah listings from E-Bike Power UK and coreebikes.co.uk. Discharge figures are the BMS continuous / peak ratings, which matter more than capacity for feeding a high-power motor.

*ECC Ride price is the listed range across its 48V/52V/72V variants; the 72V 20Ah is currently sold out (waitlist). All figures verified on each seller’s live page, July 2026, and subject to change — confirm before ordering. Competitor links open in a new tab.

How the UK Options Compare

Where does KirbEbike sit? Not the cheapest and not the dearest — mid-pack on price. What it adds for that is a bundled 5A fast charger, the app-tunable controller ecosystem, and a four-country (UK/US/France/Netherlands) service network, with LG or Samsung 50S cells and a 60A BMS in line with the field. If outright price is your only priority, the sub-£500 options above win; if you value the bundled charger, tuning and after-sales reach, KirbEbike earns its place.

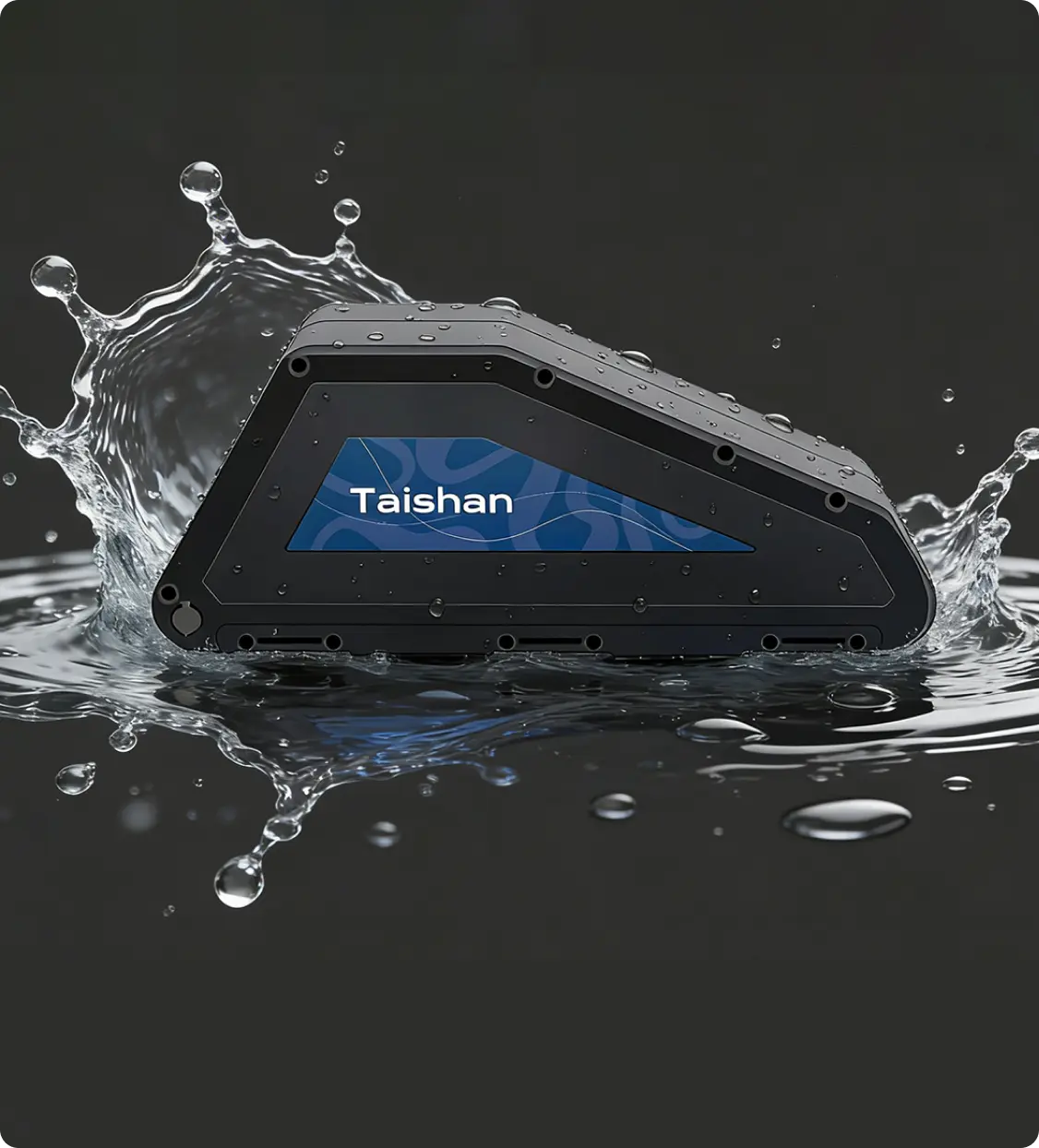

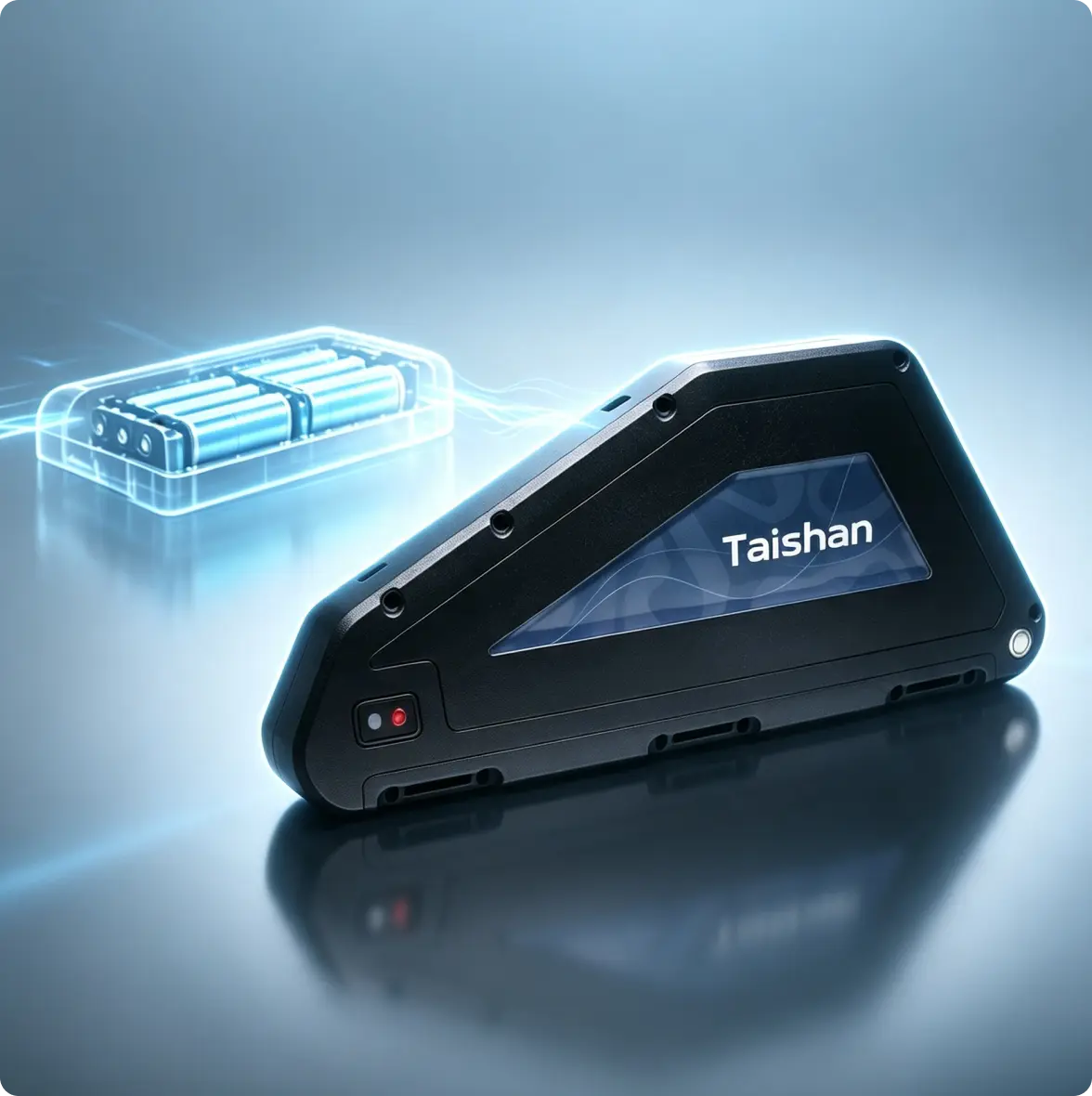

• Taishan 72V 20Ah (60A BMS, 5A charger) — the compact-footprint option.
• HS-II 72V 20Ah (60A BMS, 5A fast charger) — needs more frame room; USB-C output.
• 72V 4000W kit (ships with a 72V 20Ah pack) — the high-power kit these packs suit.

Beyond This Shortlist

This is a representative sample of UK-facing sellers, not the entire market — others such as TrailSurge, BOOANT and E-Bike Masters also list 72V Samsung- or LG-cell triangle packs, and specialist builders will make a custom pack for sustained 60A+ or an unusual frame. Whoever you buy from, judge each pack on the same five things, in this order: cell type, BMS continuous current (matched to your controller), warranty, physical fit and after-sales support — all confirmed on the seller’s own page. See our 72V triangle pack reviews for closer looks.

Common Mistakes When Choosing Between 20Ah and 30Ah

Most 72V buying regrets come from a handful of avoidable errors. Run through these before you commit.

Choosing Only Based on Amp-Hours

Bigger is not automatically better. A 30Ah pack is the wrong call if it will not fit your frame, if the extra weight hurts handling for your riding, or if your controller and motor can’t make use of it. Match capacity to real need, not to the largest number on the shelf.

Ignoring the BMS Current Rating

A large tank with a weak BMS still limits performance. If the BMS continuous rating sits below your controller’s draw, expect voltage sag and cut-outs regardless of capacity. The BMS must support the controller — check it explicitly.

Assuming a Bigger Battery Means More Speed

It doesn’t. Top speed is set by voltage, controller current, motor winding and wheel size. Going from 20Ah to 30Ah adds range and reserve, not miles per hour. If speed is the goal, that is a controller-and-motor conversation, not a capacity one.

Forgetting Battery Mounting Safety

High-power packs are heavy and carry serious energy, so they need a secure mount (not zip ties alone), correctly rated connectors, and sensible charging habits. A rattling pack stresses connections and wiring over time — fit the bracket properly and re-check it after the first few rides.

Final Verdict: 72V 20Ah vs 30Ah — Which Is Better?

For most riders, a 72V 20Ah pack is the easier bike to own: lighter, simpler to fit and cheaper up front, with around 1,440Wh that comfortably covers shorter and mixed rides. A 72V 30Ah pack, at roughly 2,160Wh, is the choice when range is the priority — long off-road days, heavy or high-power builds, and riders who want a bigger reserve before charging — accepting more weight, bulk and cost in return.
