How Far Can You Really Ride on a 72V 20Ah Ebike Battery?

Q: What motors is this battery compatible with?

It’s designed for high-powered motors:3000W to 4000W ebike kitsIdeal for KirbEbike’s 72V 4000W KitSupports continuous discharge up to 60A, making it suitable for extreme off-road setups.

Q: How long does it take to fully charge the battery?

Using the included 5A fast charger, full recharge takes:4 to 5 hours from empty to 100% This charger is included free with your battery.

Q: What makes this battery better than other options?

Premium LG/Samsung cellsHigh-discharge 60A BMSIP65 waterproofingUSB-C charging portLED indicator + stainless steel power switchFast 5A charger includedRated for 800+ charge cycles (~3+ years of regular use)

In this guide, we’ll break down the realistic riding range of the KirbEbike 72V 20Ah Lithium Battery, explain what affects battery life, and give you pro tips to maximise every charge whether you’re running a 72V 3000W ebike kit with battery or a full 4000W off-road setup.

Andy Kirby

Updated 30 Oct 2026Reviewed by the KirbEbike conversion-support team

On this page

If you’re investing in a 72V ebike setup, one of the biggest questions on your mind is likely: how far can I go on a full charge? With more power, speed, and torque than lower-voltage systems, a 72V 20Ah ebike battery packs serious performance but how does that translate into real-world range?

The truth is, range depends on more than just numbers. Factors like terrain, throttle usage, rider weight, and even tire pressure can impact how far you can ride. That’s why it’s important to understand not just the battery specs, but how they perform under everyday conditions.

If you're considering upgrading to high-voltage performance, or already own a 72V ebike battery, this is the ultimate range guide you need.

72V 20Ah Battery Specs: What You’re Really Getting

72V 20Ah Battery Specs: What You’re Really Getting — How Far Can You Really Ride on a 72V 20Ah Ebike Battery?

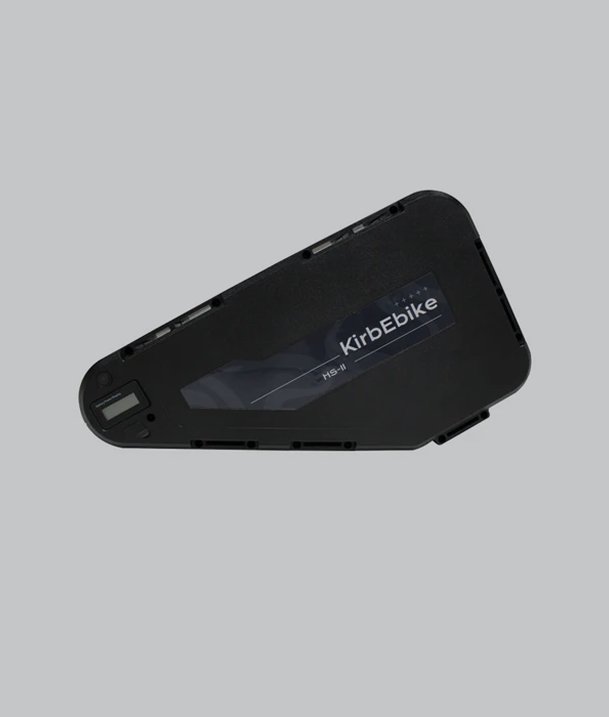

The KirbEbike 72V 20Ah lithium battery isn’t just powerful. it’s engineered for serious electric performance with intelligent safety features, fast charging, and long-term reliability. Whether you're pairing it with a 72V 3000W ebike kit with battery or a full 4000W motor, this battery is built to deliver.

Core Technical Specs

Spec	Value
Battery Voltage	72V nominal / 84V fully charged
Capacity	20Ah (1,440Wh total energy)
Cycle Life	800+ full charge cycles
Charging Time	4–5 hours with included 5A fast charger
Discharge Rating	60A continuous BMS — supports 3000W–4000W kits

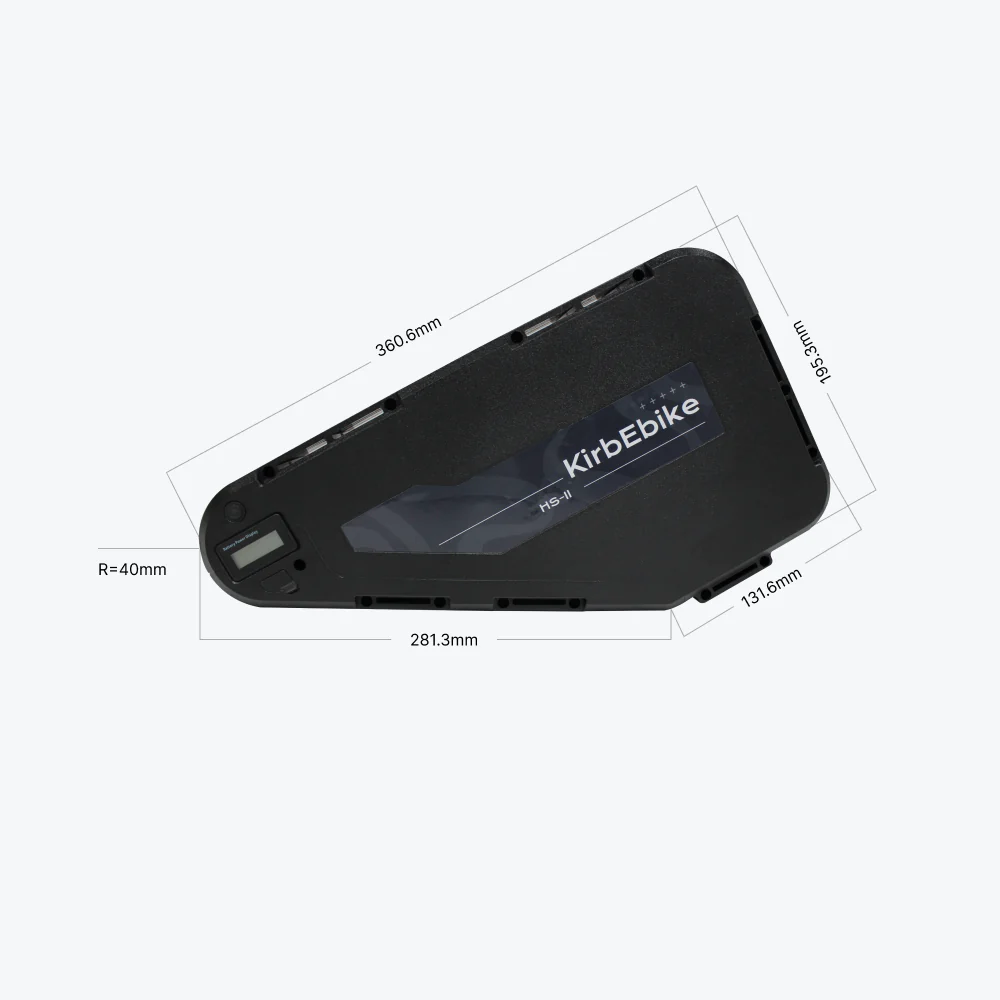

Size	360.6 × 159.3 × 40mm (triangle form)
Weight	Compact and mid-weight (frame mountable)
Port Features	USB-C for phones, 3-pin charge port, power switch

Smart Safety & Performance Features

BMS (Battery Management System) with overcurrent, thermal, and overvoltage protection
IP65+ water resistance
Stainless steel power switch + clear battery indicator
84V 5A charger included for safe, fast charging

What Factors Impact Your Real-World Range?

While the theoretical range of a 72V 20Ah battery is around 60–90 km, your actual riding distance will depend on several variables.

Here’s what truly affects how far your 72V ebike can go:

1. Motor Power Consumption (Wattage)

3000W setup: Expect ~45–70km
4000W setup: Closer to ~35–60km
Higher wattage = more torque and speed, but faster energy draw

2. Throttle vs Pedal Assist

Full-throttle riding: Fun and fast, but reduces range quickly
PAS level 1–3: Optimises efficiency; can extend range by 20–30%
Mixed usage gives the best balance

3. Terrain & Elevation

Flat roads = longer range
Hills, off-road, and soft surfaces (sand, mud) = higher load
Technical trails may reduce range by up to 25%

4. Rider Weight & Cargo

Heavier riders or cargo loads place more strain on the motor
20–30kg extra weight can reduce range by 10–15%

5. Tyre Pressure & Bike Setup

Low tyre pressure = more rolling resistance
Improper brake alignment = drag
Ensure drivetrain is clean and chain is lubed for best efficiency

6. Battery Health Over Time

The KirbEbike battery is rated for 800+ cycles, but range will slowly decline after year 2–3
Avoid full discharges to extend lifespan

Example Range Scenarios:

Setup Scenario	Estimated Range
PAS Level 2, flat road, 70kg rider	75–85 km
PAS Level 5, hilly trail, 100kg rider	40–50 km
Full throttle, off-road, fat tire MTB	35–45 km
Mixed use, commuter + weekend trail	60–70 km

Battery Parameters: Core Specs That Matter

The KirbEbike 72V 20Ah Lithium Battery is engineered for high-performance ebike kits, supporting motors from 3000W to 4000W. Here are the core numbers:

Spec	Value
Nominal Voltage	72V
Fully Charged Voltage	84V
Capacity	20Ah (1,440Wh total energy)
Discharge Current	60A continuous (BMS protected)
Cycle Life	800+ full charge cycles
Form Factor	Triangle battery (frame mount)
Dimensions	360.6 × 159.3 × 40mm

2. Battery Features: Smart, Compact, Built to Last

This 72V battery isn’t just powerful — it’s smart and safe:

BMS (Battery Management System) with:
- Overvoltage protection
- Overcurrent protection
- Thermal monitoring
Stainless Steel Power Switch for secure on/off control
USB-C Port (1A) for charging your phone on the go
LED Battery Indicator shows real-time power status
Water-resistant Design (IP65 rated)
Cycle Life: 3+ years with regular use

3. Charger: Fast, Safe & Included

You get a 72V 5A Fast Charger with the battery for quick, efficient recharging.

Charger Spec	Detail
Input	100–240V AC, 50/60Hz
Output Voltage	84V
Charging Current	5A
Charge Time	4–5 hours (full recharge)
Safety	Overheat & overcharge protection

4. How Far Can You Really Ride on a 72V 20Ah Ebike Battery?

Riding Condition	Estimated Range
PAS Level 2, paved roads, 70kg rider	75–85 km
PAS 3–4, light trail, 85kg rider	60–70 km
Full throttle, fat tire MTB, hilly terrain	35–50 km
Mixed usage (commute + trail)	60–75 km

Is the 72V 20Ah Ebike Battery Right for You?

If you're riding a high-powered 72V ebike, especially one equipped with a 3000W or 4000W motor, the KirbEbike 72V 20Ah Lithium Battery is the perfect match. It delivers the power, range, and durability serious riders need — all in a compact, intelligently designed package.

With up to 80km of real-world range, a 5A fast charger, and advanced BMS safety features, this battery doesn’t just power your ride — it protects it. Whether you're cruising long-distance trails, climbing steep terrain, or pushing your ebike to full throttle, this battery gives you the confidence and consistency to ride hard, charge fast, and go further.

For serious performance, long-term value, and plug-and-play compatibility with KirbEbike's entire 72V kit lineup — this is the battery that takes your ebike to the next level.
