Electric Bike Battery Guide: Power, Range & Choice

The right electric bike battery is the pack that matches your motor and controller voltage, supplies enough current for the system, physically fits the bike, and holds enough watt-hours for your real route — not the one with the biggest Ah number or the boldest advertised mileage. This pillar guide covers everything that decides whether a pack will actually work on your bike and last: capacity and watt-hours, realistic range, BMS and current matching, cells and build quality, mounting and connectors, charging, safety and service life.

The short answer

Battery listings lead with voltage and amp-hours, but those numbers answer different questions. Voltage affects system compatibility and performance. Amp-hours show charge capacity at one voltage. Watt-hours are the clearest measure of stored energy and expected range. And the BMS current rating decides whether the pack can safely support your motor’s demand. The formula: watt-hours = voltage × amp-hours — 48V × 20Ah = 960Wh, 52V × 30Ah = 1,560Wh. Compare packs in watt-hours, then check current, fit, connector and charger before you buy.

📚

Part of our batteries and controllers series

Main guide: Which E-Bike Battery Do I Need? 36V vs 48V vs 52V vs 72V Explained. Related in this series:

• How to Choose Battery Capacity (Ah & Wh) for Your E‑Bike Conversion Kit
• How to Match an E‑Bike Battery to Your Motor Power Safely
• 36V vs 48V E‑Bike Batteries: Which Voltage Is Right for You?

Battery Specifications, Explained

Voltage: what 36V, 48V, 52V and 72V mean

Voltage must be compatible with the controller input range, the display, the motor system, the battery meter, the charger and any accessories. Higher voltage may let a compatible motor spin faster or hold performance under load — but voltage alone does not determine range, and it never guarantees a universal top speed, because speed also depends on motor winding, controller current, wheel size, gearing, load, terrain and software limits.

Amp-hours vs watt-hours

Amp-hours measure charge capacity, and they’re most useful when comparing batteries at the same voltage — a 48V 20Ah pack holds roughly twice the energy of a 48V 10Ah pack. Watt-hours (volts × amp-hours) are the better comparison when voltages differ, because they express total stored energy in one number.

Note the 52V 20Ah’s extra 8.3% over a 48V 20Ah won’t show up as extra range if the rider spends it on the additional performance — and the 52V 30Ah delivers half as much energy again, in a larger, heavier, more expensive case.

What Range Will a Battery Really Give You?

Estimated range = usable battery Wh ÷ average Wh per mile. Two adjustments first: plan to keep a reserve rather than arriving flat, and accept that some energy is lost in the controller and motor. Together, roughly 85% of nominal watt-hours is what you can plan against.

Planning bands, not guarantees — calculated from usable energy, not measured on the road. Assumptions: ~90–110 kg rider-plus-bike, mixed surfaces, 12–18 mph, standard tyres at pressure, 10–20°C, light wind, some pedalling. Throttle-only riding, headwinds, knobbly tyres, heavy loads, repeated climbs or sub-5°C weather push consumption past the upper band; an older pack delivers less than its nominal rating.

Worked example: 48V × 20Ah = 960Wh nominal; about 815Wh usable after ~15% reserve and losses. At 18 Wh/mile that plans to 815 ÷ 18 ≈ 45 miles — and 40 miles is the sensible dependable figure. The best method of all: measure your own consumption over a few typical rides and re-plan from that number.

Why advertised range differs from real range: assist level, speed, hills, rider and cargo weight, tyre pressure, headwind, temperature, stop-start riding, motor efficiency, battery age and voltage sag all move the real figure — which is why a capacity-and-consumption calculation beats any single advertised distance (Cycling UK).

48V vs 52V, for Capacity Shoppers

Three points carry over from the voltage decision. First, a 52V pack is not a drop-in upgrade for a 48V system — it reaches about 58.8V fully charged against roughly 54.6V, and every connected component has to be rated for that peak; UK guidance warns that mismatched modifications increase electrical load and fire risk (GOV.UK / OPSS). Second, if the goal is range, add amp-hours rather than volts — more Ah at the same voltage is the lower-risk upgrade and delivers the energy directly. Third, whichever you choose, the BMS current rating and physical fit decide whether the pack works — and they matter more to most buyers than 48-vs-52.

What Battery Size Is Best?

Planning ranges, not universal rules. A 250W motor draws little, so a moderate pack delivers useful range — especially with consistent pedalling. A 48V 16–20Ah pack suits many 1,000W builds, provided the BMS supports the controller’s current; higher-capacity 52V systems reduce sag on 2,000W builds.

Battery size for 3,000–4,000W builds

At this level a big amp-hour figure tells you almost nothing — what decides whether the pack works is whether its continuous discharge current, connector, wiring and cells supply what the controller actually demands. These two examples use real KirbEbike specifications from the 60V 3000W and 72V 4000W kits:

An honest limitation at the top of the range: on a 4,000W build the 60A controller and the 60A continuous BMS meet with no margin. Sustained full power — a long climb at full throttle — runs both at their rated ceiling, increasing heat and sag with nothing in reserve. Two practical options: set a lower battery-current limit in the app for sustained climbing, or treat continuous full output as a short-duration capability. The 70A rating is a brief peak figure, never continuous headroom. And whichever pack you choose, the cable gauge, fuse, connector and cell capability must all carry the same current — a 60A BMS behind an undersized connector just moves the weak point.

Motor Watts vs Battery Watt-Hours

A 1,000W motor rating doesn’t mean the battery holds 1,000 watts of energy. Power is a rate, measured in watts; watt-hours are a quantity of stored energy. A motor rated 1,000W averaging 500W over an hour consumes 500Wh — so a 960Wh pack at a 500W average gives about 1.9 theoretical hours, roughly 1.6 usable. Current rises during acceleration, climbing, cargo work, low-speed throttle use and headwinds — which is why the controller’s demand, not the motor’s label, should drive your BMS and cell selection.

BMS Current: the Spec Buyers Miss

The BMS protects the pack and caps how much current it will release. Size it against the controller’s maximum battery current — controllers routinely draw more than the motor’s nominal rating suggests. Sanity check: current = power ÷ voltage, so 1,000W at 48V is about 21A and 2,000W at 52V about 38A — then read the controller’s actual specification — KirbEbike’s FOC controllers publish their battery-current limits for exactly this check.

Three separate specifications — a pack that satisfies one can fail on another. And the whole current path must carry the load: cell discharge rating × parallel groups, cable gauge, connector rating (XT60 lower-current, XT90 for 60V/72V) and fuse — the lowest sets the real ceiling. An undersized BMS shows itself fast: cut-outs during acceleration, power loss on hills, heat and repeated protection trips.

Cells, Chemistry and Build Quality

Cell selection drives capacity accuracy, discharge capability, voltage sag, cycle life and traceability — but pack design matters as much as the cell brand. Series groups set the voltage, parallel groups set the amp-hours and current capacity, and a pack with sound welding, fusing and thermal management outlasts a poorly built one using identical cells. Unbranded cells aren’t automatically unsafe, but you’re entitled to specifications that can be checked and a supplier prepared to stand behind them.

Mounting, Connectors and Controller Checks

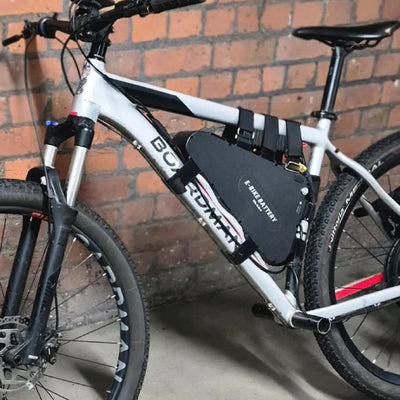

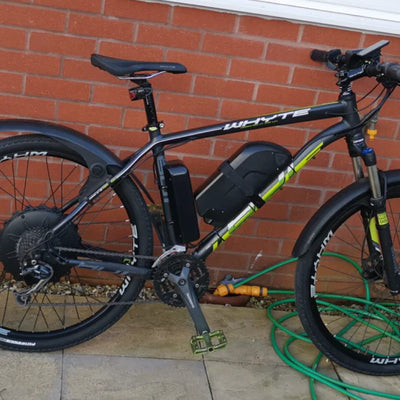

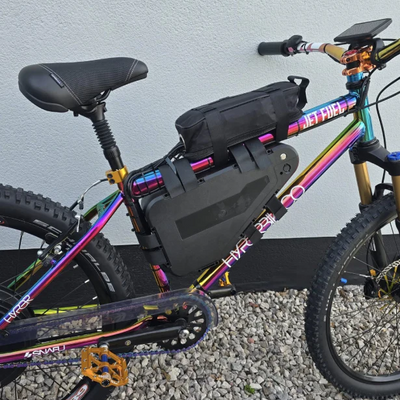

Down-tube packs are neat, removable and central, limited by case dimensions and mounting points. Triangle packs use more of the frame and offer higher capacity — the fit for high-power builds. Rear-rack packs are easy to remove and suit step-through frames, at the cost of rear weight. Measure before ordering: available length, width, triangle opening, bottle-boss position, cable exit, controller location, crank and suspension clearance, and the battery’s removal direction — a cardboard template is the cheapest way to avoid a return.

Connector and controller checks: matching voltage is not enough. Check the discharge connector, charge connector, polarity, controller voltage range and current limit, display compatibility, switch wiring, fuse rating, mount and charger voltage. Connectors span XT60, XT90, Anderson and proprietary cradle types — and two that look identical can still have reversed polarity. Never improvise an unprotected adapter.

How Long Does a 48V 20Ah Battery Take to Charge?

Approximate bulk time = Ah ÷ charger amps, plus the final constant-voltage and balancing stage:

Actual time varies with starting charge, charger efficiency, BMS limits, cell balance, temperature and the taper near full. A 2A charger runs cooler and suits overnight charging; a 5A charger suits larger packs and short turnarounds — approved replacement chargers are available for KirbEbike packs — but only when approved for that battery on voltage, connector, BMS charge-current limit and charge profile.

How Long Will a Battery Last?

Three questions hide in that one. Runtime per charge depends on watt-hours and average draw. Distance per charge depends on Wh per mile. Service life in years depends on cycle life, heat, storage charge, depth of discharge, charging rate, cell quality, calendar age, vibration, moisture and current demand — capacity fades gradually rather than expiring on a date.

What Voltage Is a 48V Battery When Full or Empty?

For a common 13-series lithium-ion battery, full charge is typically about 54.6V, the nominal system voltage is called 48V, and the low-voltage cut-off varies by BMS and controller — there is no universal “dead” voltage. And the number you see moves with load:

That’s why the display dips on a climb and recovers at the top — voltage sag. A pack that sags heavily under only moderate load is usually undersized for the controller, ageing, or cold.

Does a larger battery make the bike faster? A higher-Ah pack at the same voltage gives more range, not a higher programmed top speed — though it can feel stronger by sagging less, supporting more current and holding voltage longer. A higher-voltage battery may raise motor speed, but only in a system built for it.

Battery Safety Checklist

Before buying: a reputable seller, traceable specifications, the correct charger and voltage, BMS information, a warranty, instructions, and conformity and transport documentation. While charging: UK guidance recommends an authorised charger, charging while awake and present, keeping batteries away from escape routes, not covering the pack or charger, unplugging after charging, and avoiding excessive heat, cold and damp (GOV.UK).

KirbEbike Battery Options by Riding Need

The live KirbEbike battery collection lists three families: the standard lithium batteries in 36V, 48V and 52V, Taishan in 48V–72V, and HS-II in 52V–72V. The standard down-tube pack suits common conversions at lower voltages; Taishan and HS-II add higher-voltage options with 60A BMS boards and 5A chargers for performance systems — the 72V 20Ah packs sit at the top of the range. Confirm the charger, BMS rating, case dimensions and connector for the exact configuration before ordering.

KirbEbike vs Other Battery Options

These options solve different problems — an open conversion battery is not interchangeable with a proprietary OEM pack. Confirm current specifications on each provider’s own page before buying.

How to Choose, Step by Step

1. Confirm the system voltage — check the controller, display and charger
2. Record the controller current — use its battery-current limit to select the BMS and cells
3. Calculate required watt-hours — trip miles × expected Wh/mile × reserve (a 30-mile trip at 20Wh/mile needs 600Wh, or ~720Wh with 20% reserve)
4. Measure the frame — physical fit and removal clearance
5. Check connector and polarity — never assume similar-looking connectors match
6. Match the charger — voltage, connector, current and charge profile
7. Compare weight — a bigger battery changes handling and portability
8. Review warranty documents — cover for sudden failure, capacity loss, the charger, water damage and return transport
9. Buy more than the bare minimum — leave reserve for hills, cold, degradation and route changes

Local laws and public-road classifications are checked separately from battery selection — a legal build is about the complete bike, not the pack alone.

Conclusion: Match the Pack to the System, Not the Label

Match voltage before you consider capacity, and compare packs in watt-hours rather than amp-hours. Estimate range from Wh per mile under realistic conditions instead of an advertised maximum, and match the BMS current to the controller’s actual demand rather than the motor’s label. Confirm the case, mount, connector, charger and polarity before ordering.

Never fit a 52V battery to a 48V system unless every component supports the fully charged voltage, and buy from a supplier that provides traceable specifications, instructions, warranty and after-sales support. Get those right and the battery becomes the most reliable part of the bike — and if anything is uncertain, ask for fit support before ordering rather than after.
