Electric Enduro Bike frameset (black)

Name: Electric Enduro Bike frameset (black)
Brand: KirbEbike
Price: 1028.0 GBP
Availability: InStock

Free Shipping

£1,028.00

Frame:Enduro E-Bike Frame Set

Fork:DNM USD-8 Fork

Rear Shock:DNM RCP2S Rear Shock

Variant

I TOOK THE BIG EBIKE INSTEAD OF THE CAR!!!

Electric Enduro is a frame for 1000w-5000w electric bike. It was invented for those who want to get maximum power, mileage, reliability and comfort from an electric bike. EEB frame is good for 500w-5000w hub motor. One bike can be used as a pedal bicycle and as a motorcycle for fun and local transport.

What's in the box?

What's in the box of the Enduro e-bike frame set?

What's in the box?

What's in the box of the Enduro e-bike frame set?

· 1pcs Frame Body.

· 1pcs Swingram.

· 2pcs Torque Arms.

· 1unit Bearings.

· 1pcs Top Plastic Covers.

· 1pcs Down Plastic Covers.

· 2pcs Side Plastic Covers.

· 1unit Bolts and washers for Assembling.

· 1pcs Bottom Bracket.

· 1unit Headset.

· 1pcs Seatpost Platform.

Specifications

Enduro E-Bike Frame Set

Material 2mm Q235A steel tubes, 4mm ABS+PMMA plastic, high strength steel bolts, aluminum anodized bolts, 3M adhesive tape and sponge

Rear Shock 190-240mm

Seat Post Seat post (31.6mm) , seat clamp included

Motor 1000w-5000w

Rear Fork Drop Out 135-155mm

Battery Suitable 20-100ah lithium battery

Color Black

Weight 10kg (with all bolts and plastic)

Packing Size 79*28*51cm strong and safe carton box with foam, gross weight 12,7kg.

Technology 3D drawing, TIG welding, CNC machining, Vacuum forming, 3D dimension control, Sandblasting, Powder coating.

DNM RCP2S Rear Shock

Adjustments: Rebound / Compression / Preload / Air Pressure Adjustable/Big impact
Damper Shaft: Hard chromed shock Ø 12 mm ( 0.47 inch ) shaft. Dark hard-anodized AL-7075 shock body.

Available Size 220 × 66 mm ( 8.66 × 2.60 inch)

Riding Style AM / FR / DH

Color Black

Weight 0.41 KG ( 0.91 Ib )

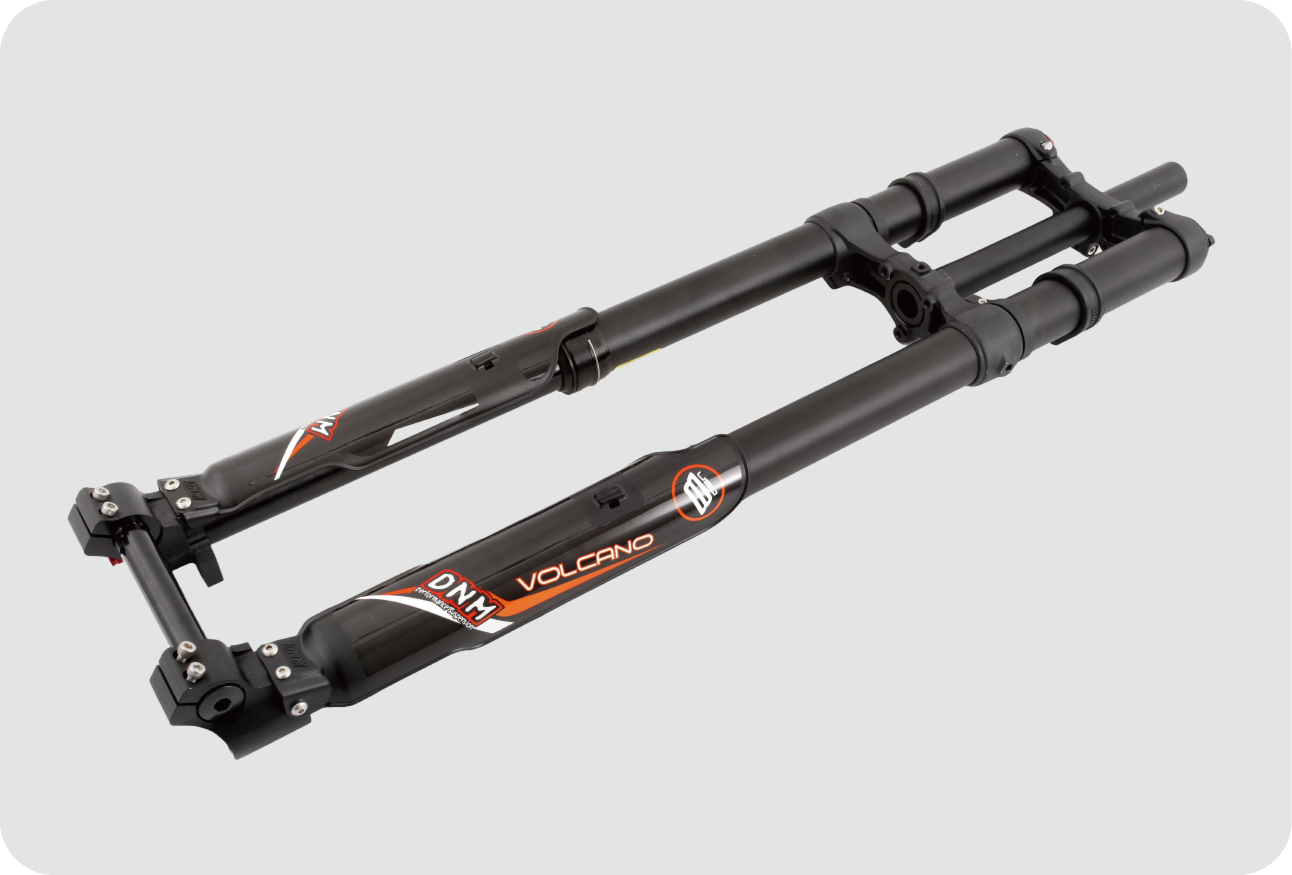

DNM USD-8 Fork

Steerer Tube：28.6 mm (1.13 inch) (Straight)1-1/8" to 1.5” (Taper) AL-7075
Inner Tube: 35mm / AL-7075 Hard Anodized
Down Tube: 20 mm ( 0.79 inch ) Axle x110mm Thru-axle Design AL-7075
Barke Type: Dual Disc Brake
Riding Style: DH
Color: Black
Inner Structure: Coil spring

Weight 3.9 KG ( 8.6 lb)

Wheel Size 24 / 26 / 27.5 inch
